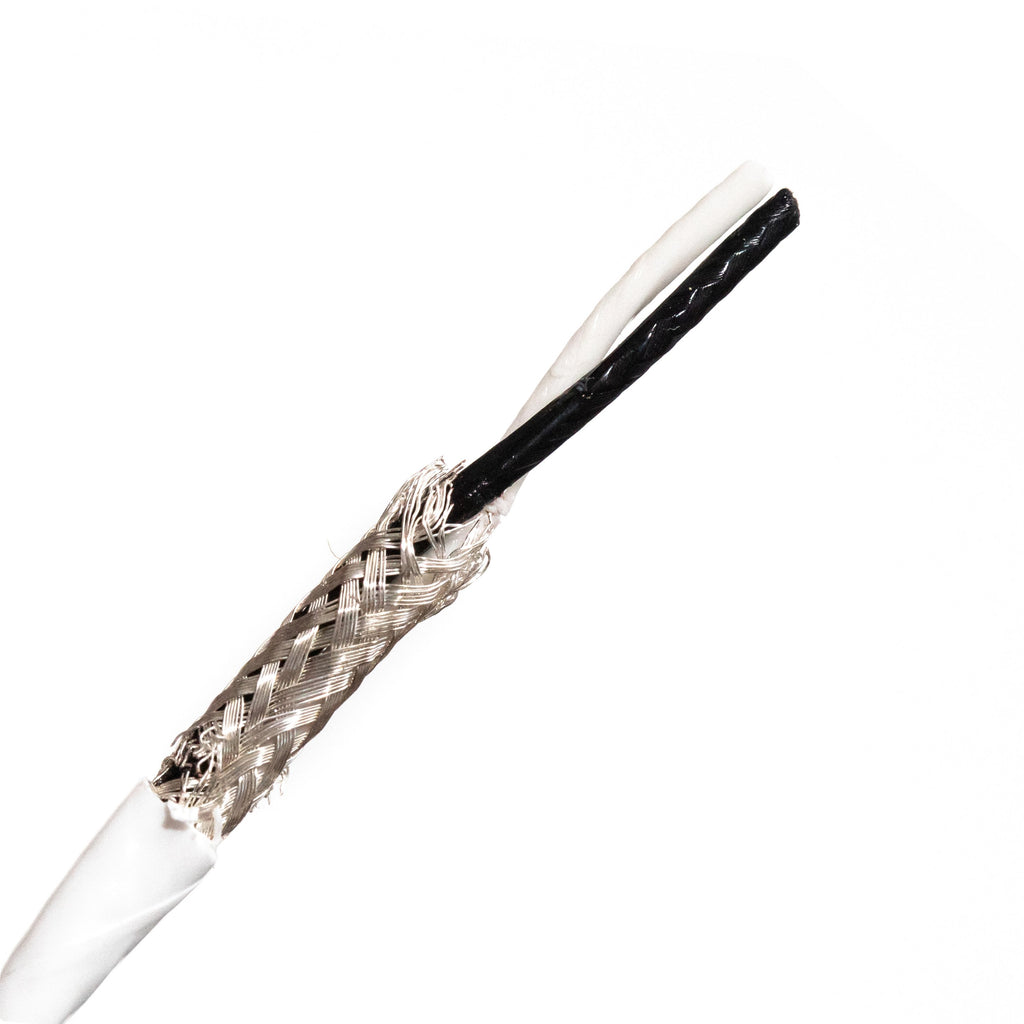

Cable, Multiconductor Shielded PTFE, 3 C #22 Str SPC, PTFE Ins, SPC Braid, TFE Tape Jkt, Type E, MIL-W-16878/4, 600V, 200C, 3418


Select Length: 500ft
Same day shipping for most products if ordered by 2PM (EST)
Available to assist with any queries or problems

Estimate shipping


No of Conductors 3
Conductor Size 22 AWG
Stranding 19/34, Silver Plated Copper
Nom Wall Thickness 0.010 in
Nom Jacket Thickness 0.012 in
Nom OD 0.149 in
Voltage 600 V
Insulation PTFE
Shielding 85% Silver Plated Copper Braid
Jacket PTFE Wrap, White
Color Code White,Black,Red
Operating Temperature -65 to 200 ������C
RoHS Compliant Yes
Standards/Certifications Other
