Cable, Multiconductor Shielded PTFE, 1 Pr

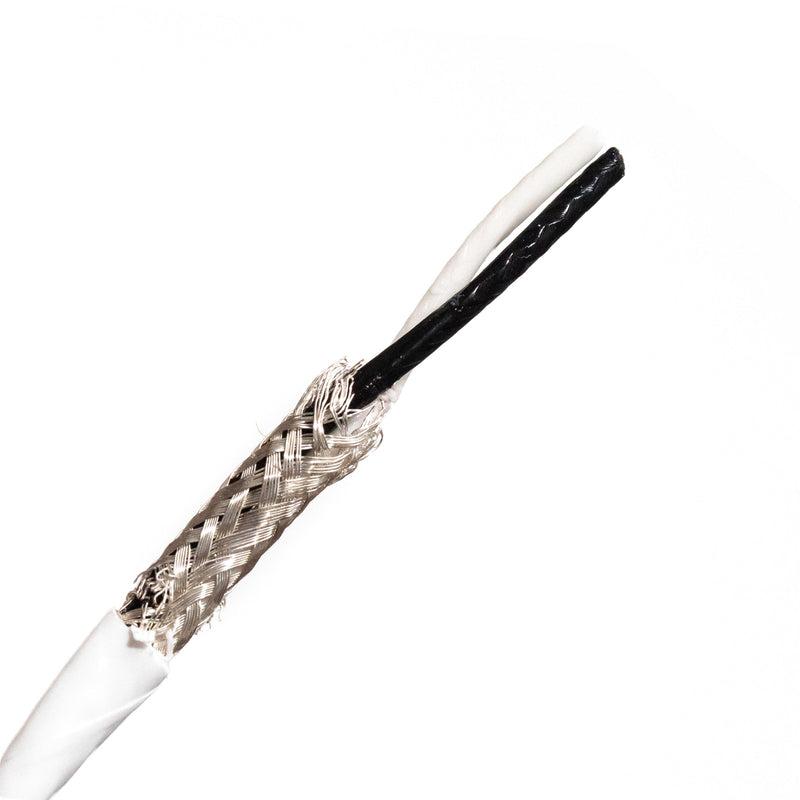

This image is only representative and may not match the actual product. Roll over image to zoom in Click on image to zoom
Cable, Multiconductor Shielded PTFE, 1 Pr

Cable, Multiconductor Shielded PTFE, 1 Pr #22 Str SPC, PTFE Ins, 90% SPC Braid, TFE Tape Jkt, Type E, MIL-W-16878/4, 600V, 200C, 3417

Olympic Wire Part Number

3417
Select Length: 500ft
Same day shipping for most products if ordered by 2PM (EST)
Available to assist with any queries or problems

Estimate shipping

View Color
Code Charts

Description

No of Conductors 2
Conductor Size 22 AWG
Stranding 19/34, Silver Plated Copper
Nom Wall Thickness 0.010 in
Nom Jacket Thickness 0.010 in
Nom OD 0.141 in
Voltage 600 V
Insulation PTFE
Shielding 90% Silver Plated Copper Braid
Jacket PTFE Wrap, White
Color Code White, Black
Operating Temperature -65 to 200°C
RoHS Compliant Yes
Standards/Certifications Other
×
